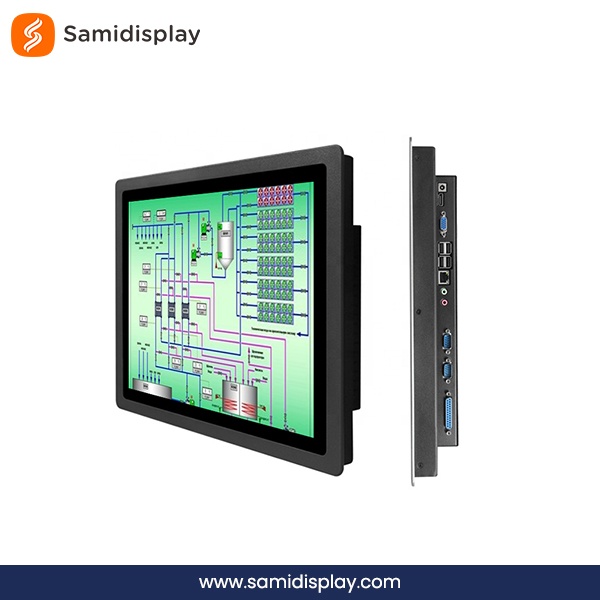

17 inch Industrial PC Touch Panel

Product No.：202446234557
Price：$260-$380
Screen Size：17 inch
Resolution：1024 x 768 pixels
Brightness：300cd/m2

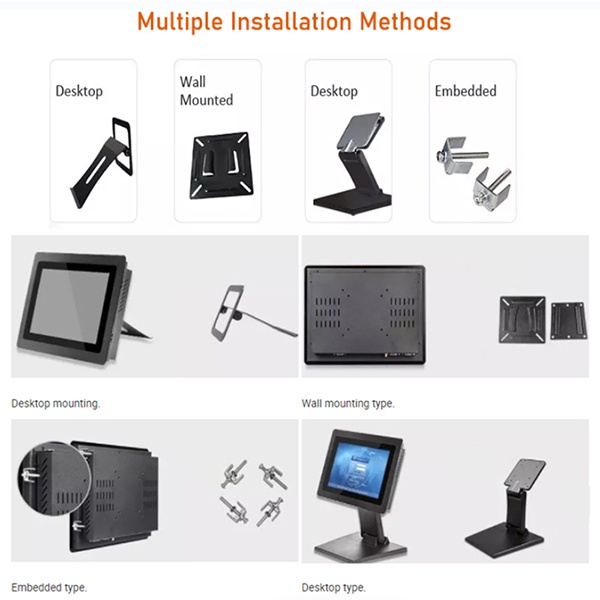

Installation Way：Wall mount / Embed
Warranty：12 months
Operating System：Windows 10 / 11
Certificate：CE ROHS
Online Inquiry

What is a Industrial Touch Panel PC?

Samidisplay Touch Panel is a multimedia 17" touch panel PC for kiosk applications. It has a fashionable mechanism design
and industrial-grade material front bezel which can avoid damage from chemical corrosion. To meet the demands of multimedia
applications, the Panel is powered by the high performance LGA1700 socket 12th gen Intel® Core™ i7/i5/i3 and Celeron® &
Pentium® processor with the Intel® H610 chipset. It features up to four COM ports, one 2.5GbE LAN, one 1GbE LAN and up
to 64GB memory of dual-channel DDR4-3200/2666/2400 delivers high computing capability for high-performance-demanding

applications. The industrial touch panel PC is ideal for retail, factory, and automation.

Expandable for 1 PCIe x16

The Panel has one PCIe x16 slot for expansion purposes. Users can easily plug in standard half-size PCIe card according to
any application needs.

WLAN Antenna Supported

The Panel features an application to display multimedia content program. It also supports a WLAN module antenna (optional) for
wireless network connectivity.

Friendly Less Screw Design

The Panel is designed with ease of maintenance in mind. There are only two screws on the back chassis to allow technicians to
quickly remove the back cover with minimum effort.

Features:

● 17" LCD touch panel with 300nits of brightness

● 5-wire resistive touch

● Supports one 2.5” SATA HDD/SSD

● 1 HDMI, 1 DP, 1 VGA output for 2nd display

● One flexible I/O window

● Supports WLAN module & antenna (optional)

● Supports 2 USB 3.2, 4 USB 2.0 and 4 COM

● TPM 2.0 onboard

● Panel/VESA/wall mount kit

● 0°C to 50°C operating temperature

Product Name: Industrial PC panel

CPU: Intel® Core™ i7/i5/i3

RAM: 4GB, 8GB, 16GB

ROM: 128GB, 256GB, 512GB, 1T GB

Operating System: Windows 7 / 10 or 11

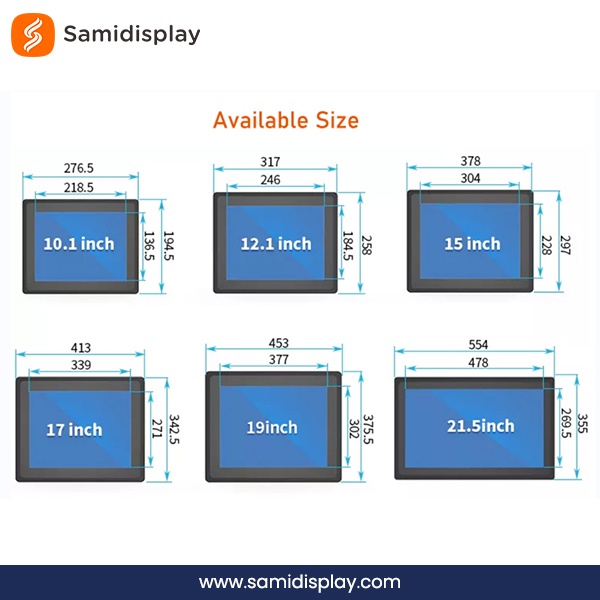

Screen Size: 10.4" /12.1" /15" /17" /19" /21.5"

Resolution: 1024*768

Brightness: 300cdm2

Screen scale: 4:3

WiFi: 802.11b/g/n

Ethernet: Support

3G: Support external 3G USB dongle

HDMI port: *1

VGA port: *1

USB Host x 4: USB Host 2.0

RJ-45: Network interface

RS232: *2

HDMI: *1

DC: DC input

Headset: 3.5mm stereo headphone output

Q1: What is the minimum order quantity?
MOQ=1 unit. Different order quantity different price.
Q2: What payment methods your company accept?
It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.
Q3: How long is the warranty time for your products?
We provide 1 year warranty for all of our products and supply life-time maintenance.
Q4: I haven't done business with your company before, how can i trust your company?
Sami Technology Limited is a professional manufacturer in China since 2012. We supply to all over the world, and have
good name in the market. We can do video factory audit to confirm that we are 100% original manufacturer.
Q5: what's the shipment terms and delivery time of your company?
It depends on order quantity, shipping address and shipping methods.
Q6: Do you give any discount ?
Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price based on the
right solution.
Q7: I would like to ask you if it's possible to have my logo on the product.
Logo printing service is available for mass order based on our M.O.Q
Q8: What kind of certification do you get?
We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
Q9: What’s the HS CODE?
Digital Signage HS CODE: 8528591090
