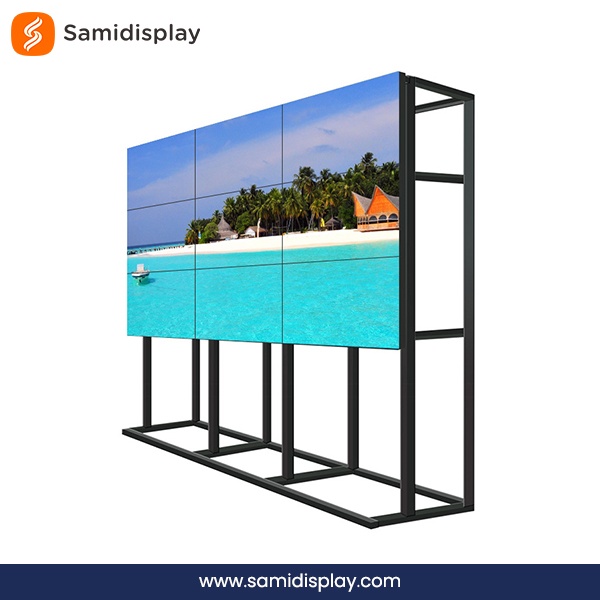

Wall Mount LCD Video Wall

Product No.：SM-VDW46
Price：$500
Screen Size：46 inch
Resolution：1920x1080
Brightness：450cd/m2
Installation Way：Floor stand / Wall Mount
Warranty：24 months
Operating System：None
Certificate：CE ROHS
Online Inquiry

Wall mount 46 inch indoor digital lcd video wall display
Commercial Grade
Designed for use in commercial applications this screen can run 24/7. No external buttons or controls to avoid tampering.
Automatic Tiling
With an integrated video matrix processor, no additional hardware is required to get your Video Wall display to tile to any
configuration.
Super Narrow Bezel
Virtually seamless appearance with a bezel of just 3.5mm screen to screen.
Multiple Configurations
These displays can be used to create Video Walls of any configuration, for example 2x2, 3x3, 1x4, 5x3 etc. Whatever your
configuration requirements these displays can support them, even if you want a portrait Video Wall.
IPS Panels
Superior image quality and colour depth at 178° ultra wide viewing angle in both landscape and portrait orientations and
with no blackening defect.
Environmentally Friendly Power Timer
Allows for a reduced power usage in those hours that the displays are not required. Set daily or weekly On/Off times for your
displays.
Advanced Temperature Control
Designed to run 24/7 in constant use each panel has an advanced temperature control system to keep it running at the
optimum temperature no matter the environment.
Portrait/Landscape Orientation
The Video Wall panels can be used in either a landscape or portrait orientation depending on your requirement.
RS-232 Control
Daisy chain multiple Video Wall panels togther via RS-232 for greater control.
Connectivity
You can run the Video Wall display from your PC or Media Players as they have a powerful interface that supports a wide
range of audio and video inputs, such as HDMI, VGA, DVI, RGB/HV, Composite Video, and YPbPr.
Network Upgrade
The screen can be upgraded to become a network screen that unlocks a host of new features including remote updates
and multiple media zones.

Panel Size	46"	49"	55"	65"
Panel Brand	Samsung/BOE	LG/BOE	Samsung/LG/BOE	Samsung/BOE
Model No.	SM-VDW46	SM-VDW49	SM-VDW55	SM-VDW65
Pixel Pitch	0.53025*0.53025mm	0.55926*0.55926mm	0.63*0.63mm	0.372*0.372mm
Total Bezel Width	1.7mm/3.5mm	1.8mm/3.5mm	0.88mm/1.7mm/1.8mm/3.5mm	3.5mm
Panel Dimension	1021.98*576.57mm	1077.6*607.8mm	1213.5*684.3mm	1432.78x807.82mm
Aspect Ratio	16:9
Resolution	1920*1080
Backlight System	WLED
Luminance(nits)	500cd/m2, 700cd/m2	500cd/m2, 700cd/m2	500cd/m2, 700cd/m2	700cd/m2
Contrast	3500:1	1300:1	4500:1	4000:1
Viewing Angle	H 178°\|V 178°
Display Colors	8Bit,16.7M
Response Time	<6ms
Life(hrs)	>60,000(hrs)
Connectivity	HDMI/DVI/VGA/AV/RJ45/Audio/Display Port
Power Supply	AC100~240V 50/60 HZ
Sleep mode	0.5W
Cooling	180W	200w	220w	350w
Net weight	20kg	25kg	28kg	40kg
Working temperature	0-40℃
Working Humidity	10-90%
Operation	7x24hrs
Life	>60,000hrs
Warranty	Standard one year without artificial damage,can be extended to 3 years,lifelong maintenance

Q1: What is the minimum order quantity?
MOQ=1 unit. Different order quantity different price.
Q2: What payment methods your company accept?
It’s usually wire transfer T/T. For partner relationship, we may consider other payment terms.
Q3: How long is the warranty time for your products?
We provide 1 year warranty for all of our products and supply life-time maintenance.
Q4: I haven't done business with your company before, how can i trust your company?
Sami Technology Limited is a professional manufacturer in China since 2012. We supply to all over the world, and have
good name in the market. We can do video factory audit to confirm that we are 100% original manufacturer.
Q5: what's the shipment terms and delivery time of your company?
It depends on order quantity, shipping address and shipping methods.
Q6: Do you give any discount ?
Yes, we are looking for long term business cooperation. We will always offer customers the reasonable price based on the
right solution.
Q7: I would like to ask you if it's possible to have my logo on the product.
Logo printing service is available for mass order based on our M.O.Q
Q8: What kind of certification do you get?
We have ISO9001 Quality Control certification. Also CE/ROHS/FCC/CCC etc for different countries’ market.
Q9: What’s the HS CODE?
Digital Signage HS CODE: 8528591090
